Downhole Equipment
Downhole Equipment for Reliable Plunger Lift Performance

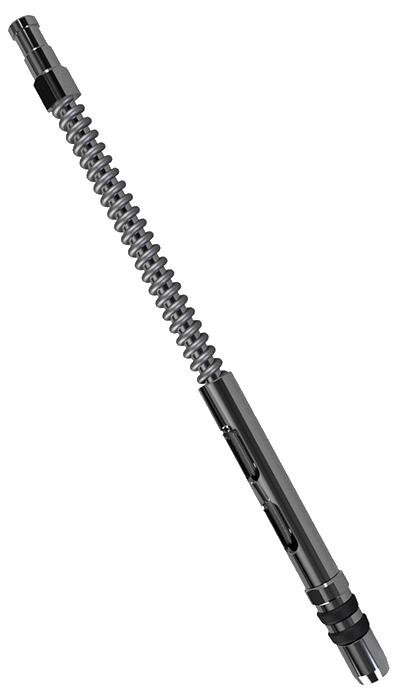

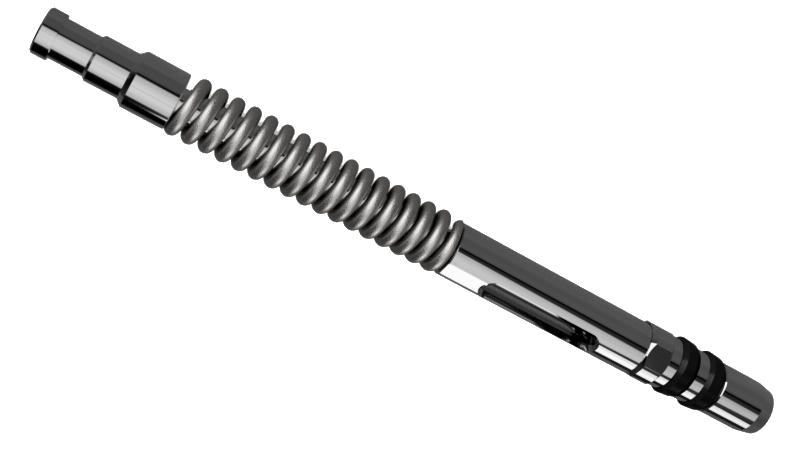

Vertical Bottom Hole Springs for Reliable Plunger Protection
Bottom hole springs are designed to protect your plunger from harsh bottom impacts. Our springs are precisely engineered to provide a cushioned landing while maintaining the strength and durability to withstand excessive impact over extended periods—ensuring long-term performance and well protection.
- Available in Conventional or High Impact
- Available with 4140 or Titanium Fish Neck
- Dual slots for increased flow
- Available in
- 2 ⅜
- 2 ⅞
- 3 ½

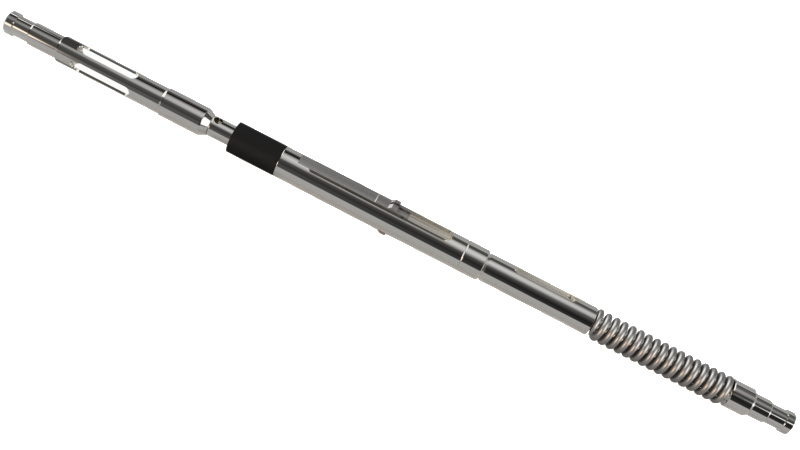

Dual-Stage Plunger Lift: Designed for Marginal Wells
Dual-stage plunger lift is an ideal solution for marginal wells that lack the drive to lift the full fluid load to surface. By installing a Tri-Lift Stage Tool, you can divide the workload between two plungers, enabling them to work in tandem for more efficient and reliable fluid removal.
- Available in
- 2 ⅜
- 2 ⅞

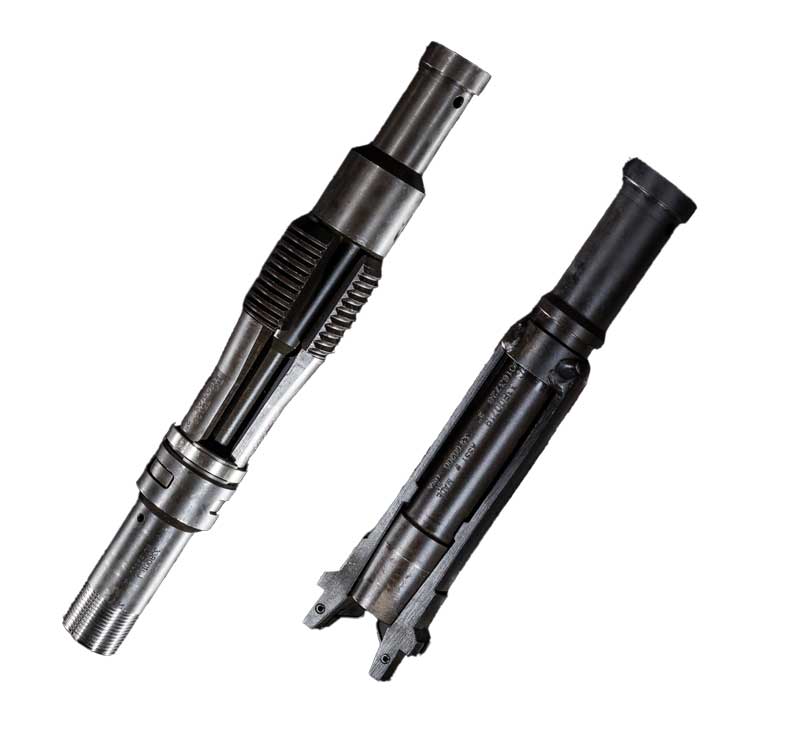

Durable Tubing Stops and Collar Stops for Long-Term Use
Tubing stops and collar stops are the most common and effective solutions for setting your bottom hole spring when a nipple isn’t available. These reliable tools provide a secure anchor point, ensuring proper spring placement and consistent plunger performance.
- Available in
- 2 ⅜
- 2 ⅞
- 3 ½
- Other sizes available on request

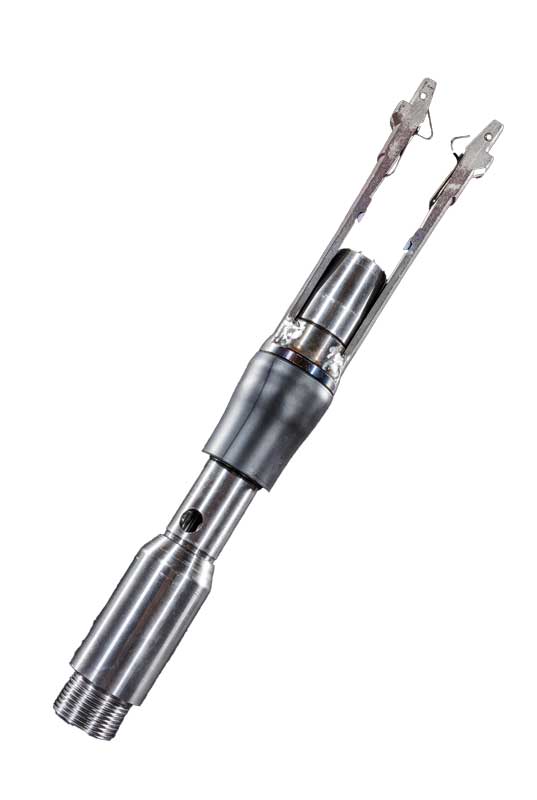

Collar Stop Packoff: Two Functions in One Tool
The Collar Stop Packoff combines a traditional collar stop with a packoff, allowing you to trap fluid using a standing valve or PRV with a single tool. This streamlined design simplifies installation and enhances efficiency downhole.
- Available in
- 2 ⅜
- 2 ⅞

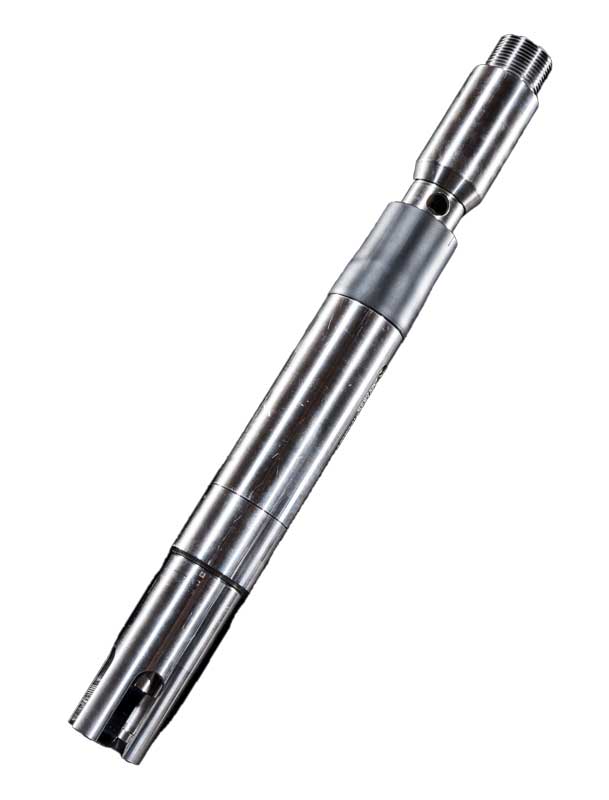

Collet Packoff: Secure Tubing Isolation Made Easy
The Collet Packoff is a reliable tool used to isolate sections of the tubing string by creating a secure seal. Its collet-style anchoring mechanism provides a strong, no-slip grip while the integrated packoff ensures effective fluid isolation—making it ideal for use with standing valves, PRVs, or other flow control applications.
- Available in
- 2 ⅜
- 2 ⅞

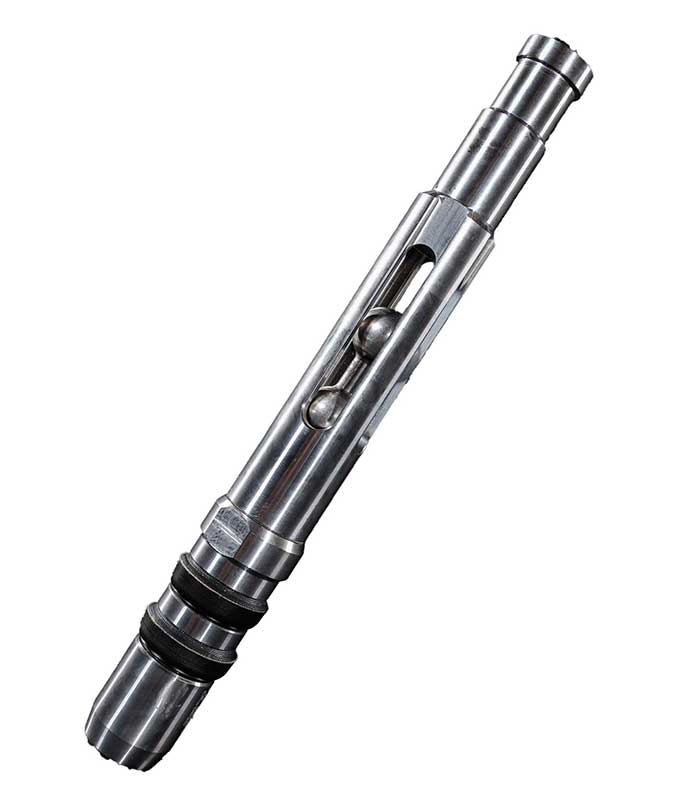

Horizontal Standing Valve: Engineered for High-Incline Wells
We’ve partnered with Quick Silver to offer their patented Horizontal Standing Valve—designed specifically for getting deeper into the curve. Its unique barbell-shaped geometry allows it to trap fluid at inclinations up to 75 degrees, far exceeding the performance of conventional standing valves, which typically fail beyond 48 degrees.
- Available in
- 2 ⅜
- 2 ⅞
